Forged Pistons and Rods tailored for Audi/V.W engine models EA113 EA888 EA839 VR6

2026-05-14

VW’s EA113, EA888, and EA839 engines are staples in the performance scene—each with unique strengths, but all limited by stock internals when pushed to extreme power.

HIMYCAR offers custom forged solutions tailored for Audi/V.W engine models , All our piston sizes are (STD) based on original factory specifications, so they fit perfectly without any modifications. We also offer 0.5mm oversize customization to meet different performance needs.

Material: 4032 forged aluminum alloy—high heat resistance, low thermal expansion, and superior tensile strength for 600–1200 HP builds.
Design: CNC-machined with reinforced pin bosses, anti-detonation grooves, and thermal barrier coating on crowns to reduce knock and heat stress.
Custom Compression: STD, pistons support 2–3.5bar boost while maintaining reliability.
Precision: All pistons balanced within ±1g per set for smooth high-RPM operation .

● HIMYCAR Forged Pistons: Built for Boost & Durability, delivering precision-built internals that stand up to the rigors of racing and street performance.

Forged Piston For EA 113 1.8T and 2.0T

Bore size: 81mm / 82.5mm

Compression ratio: 9.0/ 9.3 / 9.5

Pin diameter: 20 mm

Forged Pistons Rods For VW & Audi EA888 Gen 2,3 Engines

three process options available: Uncoated , Double-layer coated/Full -coating ,Skirt- coating,

With oil injection hole & weight reduction process

Bore size: 82.5mm / 83mm

Compression ratio: 9.3 / 9.5

Pin diameter: 23mm
Piston assembly comes with piston rings, wrist pins and circlips

For Audi VW EA888 Engines (3).jpg

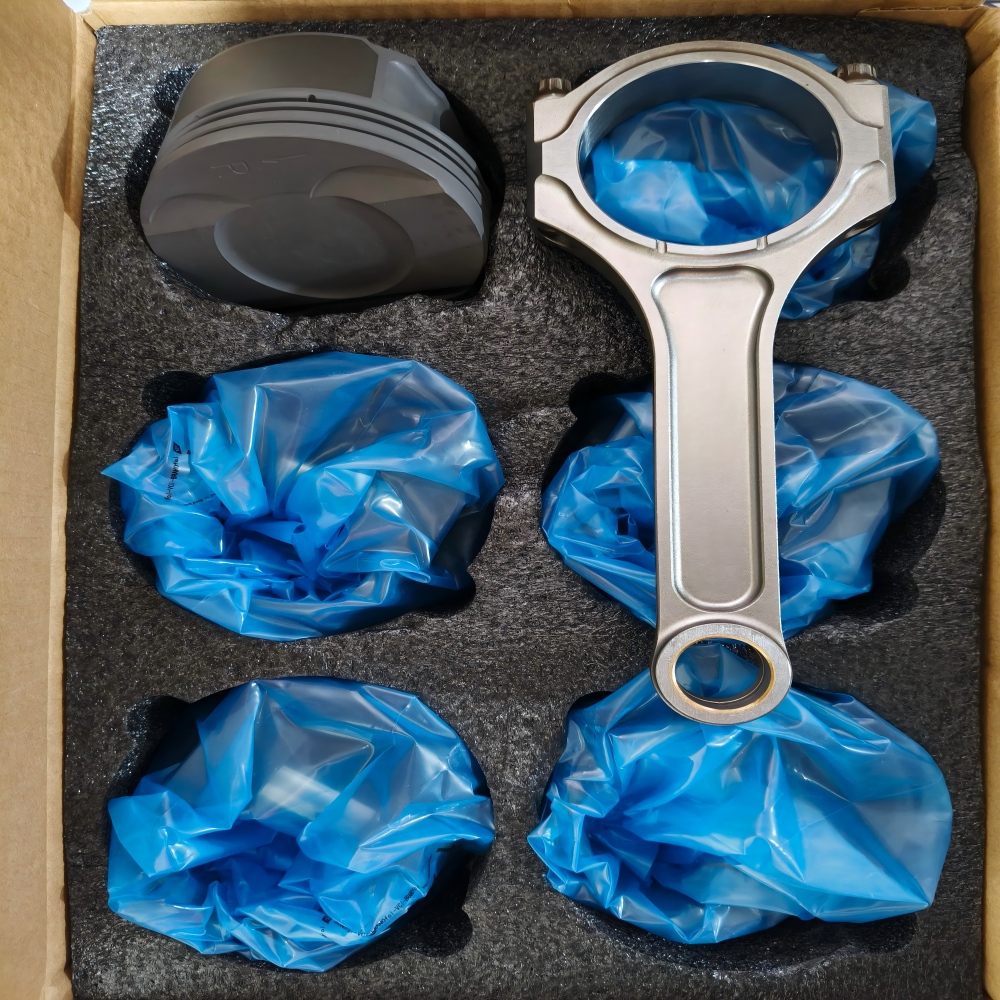

Forged Pistons Rods for VW & Audi EA839

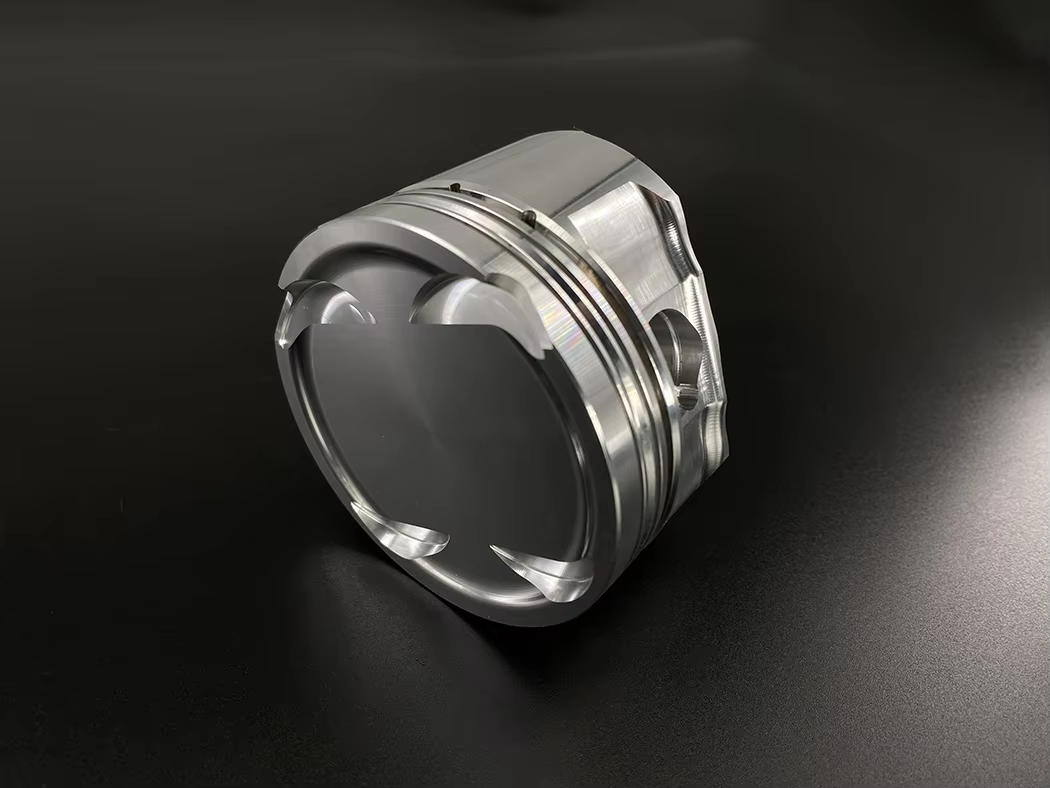

Forged Pistons Rods for VW Audi VR6 r32 (EA390)

EA390 VR6 R32.png

● HIMYCAR Connecting Rods: I-Beam & H-Beam Options

We offer two beam designs to match your power goals:

1. I-Beam Rods (Gen 2/3/4 Daily/Street Builds)
Material: 300M or 4340 (40CrNiMoA) aircraft-grade forged steel.
Rating: 1000 +HP / 8000 RPM—ideal for 600–800 HP street cars with occasional track use.
Features: Lightweight, rigid, shot-peened to relieve stress, magnafluxed/X-rayed for quality control.

ea888 2.0T 23mm I beam.jpg

2. H-Beam Rods (Gen 1/2 Rae/Extreme Builds)

Material: 300M and 4340 aerospace alloy (ultra-high strength).
Rating: 800-1200+ HP —built for drag racing, time attack, and full-track builds.
Features: Superior lateral strength, optimized big-end geometry, forged bolts included for maximum clamping force.

Balanced set (±1.5g) reduces vibration.

HIMYCAR’s custom forged pistons and rods deliver the strength, precision, and reliability needed to push your Audi V.W engine to its full potential—

Ideal for engine internal forging reinforcement & engine overhaul. Upgrade your vehicle for ultimate performance.Improved piston design, effectively solves engine oil consumption issue
