Forged Rods For FAIT Punto GT 1.4 1.6L

Custom Forged Connecting Rod for  FAIT Engine Upgrade and Retrofit!

Engine: Fiat UNO/PUNTO 1.6 16V

Center to Center Length: 128.5mm/5.059"

Big End Bore Diameter: 48.60mm/1.913"

Big End Width: 25.4mm/1.000"

Small End Bore Diameter: 22.00mm /0.866"

Small End Width: 21.95mm/0.864"

Beam Style: H-beam

  • sales@tappettech.com
  • Jane@tappettech.com
  • +86 187 8405 3187
  • +86 138 8112 9571
    • facebook-alt-4
    • youtube-alt-1
    • linkedin
    • tiktok
    Contact us
    Specification
    Introduction
    Video
    1920

    xrauto-forged-pistons-and-rods

    Feature

    - Superior Materials for Superior Performance
     SAE 4340 Chrome Moly Steel for the highest strength and durability,   dedicated for Racing
    - Designed and processed by CNC machine.
    - All big and small ends are finished with SUNNEN honing machine
    - 100% X-rayed, sonic tested and magnafluxed
    - Multi-stage heat treated
    - Come with the bronzed bushing suitable for the floating piston pin

    Specification

    SKU:  FCR-FIAT-12850-H

    Bolt Size:  3/8'' bolts

    Advertised H.P Rating: 600HP/set

    Approximate ConRod Weight: 520g/piece

    Material: Forged 4340 steel

    Pin: Bronze wrist pin bushings

    Tolerance: Balanced to +/- 1 gram in set

    MOQ : Custom Production 40pcs

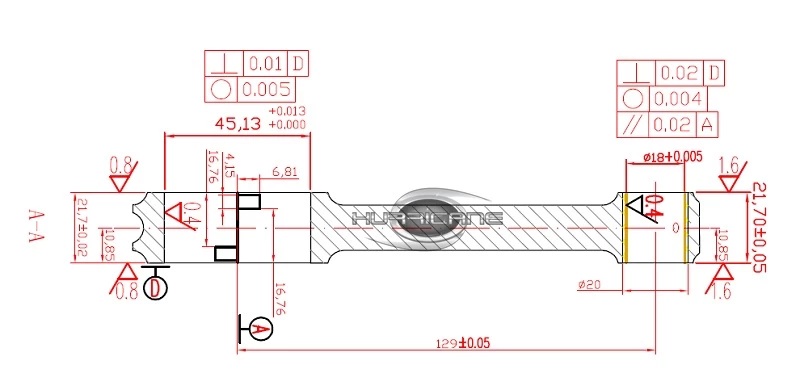

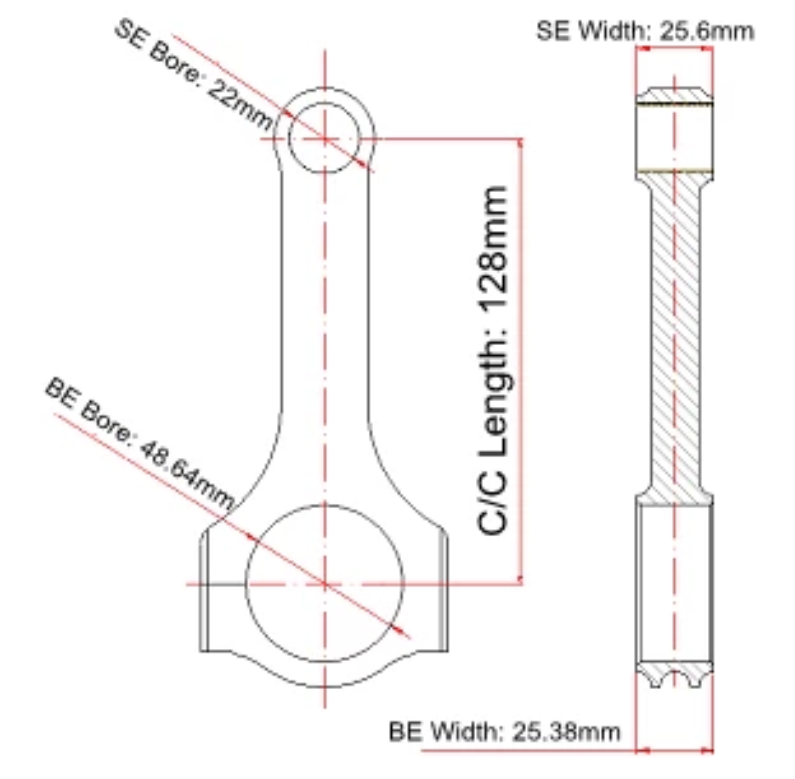

    Dimension

    Center to Center Length: 128.5mm

      Big End Bore Diameter: 48.6mm

     Big End Width:  25.40mm

      Small End Bore Diameter: 22mm

       Small End Width: 21.95 mm

    Fiat Punto GT 1.4 1.6 Turbo Con Rod 128.5mm

    y1-4
    01

    Forging Process

    Our forging process is the key to the superior quality of our connecting rods. 4  forging lines  of the connecting rod division, Each line has the functions of shot blasting, automatic eddy current testing, weighing and flaw detection.

    Billet 4340 Steel connecting rods. Closely monitored material mechanical properties for optimum performance.
    1280 6501280 650 1
