For Honda Acura K24 K24A

Custom RACING Conrods for Honda K24/K24A no Bolts .

Designed and processed by CNC machine, 100% X-rayed .

Horsepower HP making up to 150 hp ~200 hp per rod. So if you are planning on making over 600 hp on your 4-clyinder or over 900hp on your 6-cylinder, upgrade your HONDA PRO race engine with XR rods.

Center to Center Length: 152.019mm/5.984"
 Big End Bore Diameter: 51.001 mm/2.008"
 Big End Width: 19.8mm/0.780"
 Small End Bore Diameter: 22.015 mm /0.867"
 Small End Width: 19.8mm/0.780"

  • sales@tappettech.com
  • Jane@tappettech.com
  • +86 187 8405 3187
  • +86 138 8112 9571
    • facebook-alt-4
    • youtube-alt-1
    • linkedin
    • tiktok
    Contact us
    Specification
    Introduction
    Video

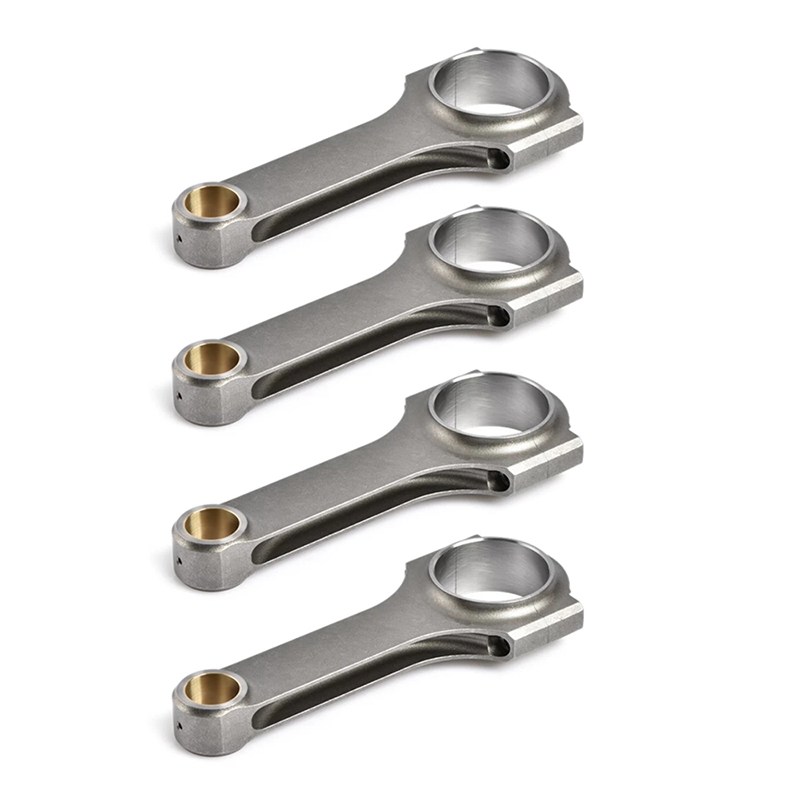

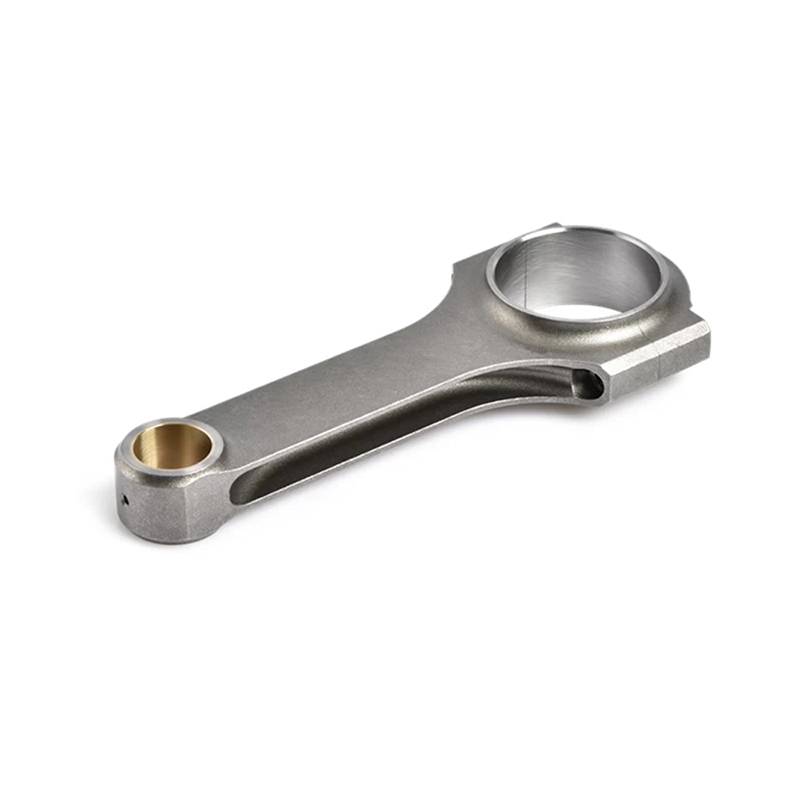

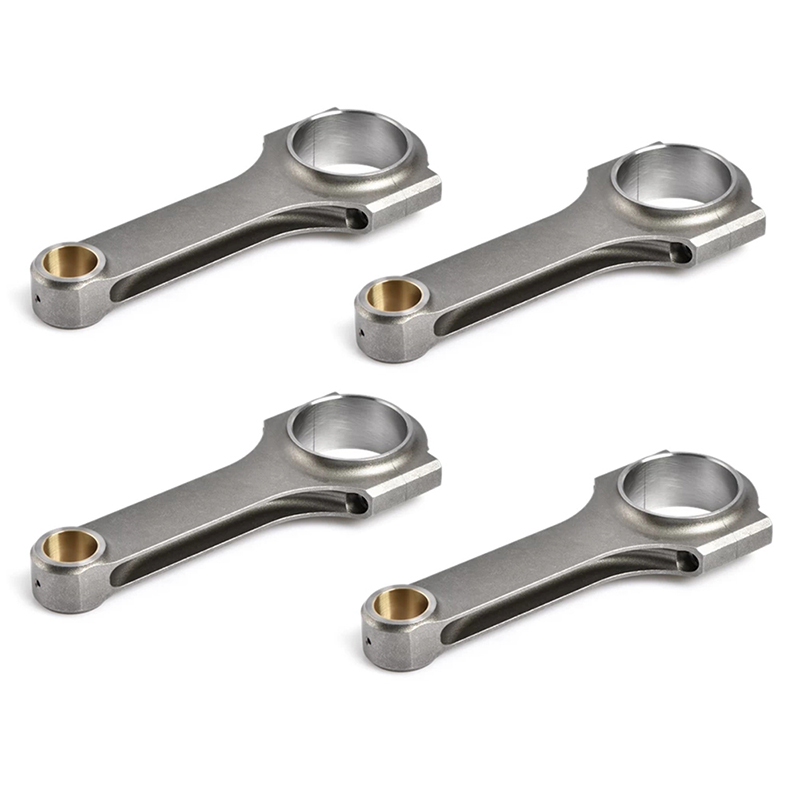

    H-beam Forged Connecting Rods for HONDA

    introdution (3)
    01

     XR Automotive Industry is Manufacturer and Supplier of forged connecting rods for automotive industry, products includes engine tappet s, rocker arms, camshaft ,Pistons and Rods.

    Connecting rods type : I-beam, X-beam,H-beam
    Custom rods set for Honda PRO RACE engine :18A ,D16/D16L,F23, H22, K20A,K24/K24A

    introdution (4)
    01

    Precision Forging Process

    Our forging process is the key to the superior quality of our connecting rods.   Each rods undergoes precision machining, including milling, drilling, and grinding, to achieve exact dimensions and tolerances for optimal performance.
    .
    introdution (5)
    01

    Main Size

    Center to Center Length: 152.019mm/5.984"

     Big End Bore Diameter: 51.001 mm/2.008"
     Big End Width: 19.8mm/0.780"
     Small End Bore Diameter: 22.015 mm /0.867"
     Small End Width: 19.8mm/0.780"
    introdution (6)
    01

    Feature

    - Strength of the fastening (PSI): 220,000/230,000 PSI, Torque: 48ft ≈ 65 NM

    - Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability

    - 100% X-rayed, sonic tested and magnafluxed

    - Designed and processed by CNC machine.

    - Multi-stage heat treated

    - Shot peened to relieve stress

    - Come with the bronzed bushing suitable for the floating piston pin
    introdution (12)
    01

    Comprehensive Support

    We provide OEM/ODM Tailored service to meet different customer’s needs.

    If you can't find the rods you need on our site, we will help you find the right product, you can download our product line cards, contact our sales for more details.

    Application

    This 4340 Chrome Moly Connecting Rods Compatible for Honda K24 Series Engines

    For HONDA/ACURA SCAT K24 K24A K24A4 K24A2 K24A1 K24Z1

    For Acura TSX CRV ELEMENT ACCORD

    Fit for Hond Accord, CR-V, Civic Si ,Element, Odyssey, Ridgeline, Accord Crosstour

    Fit for Acura TSX, RDX, ILX ,TLX K24A2 /K24 engines

    Specification

    Connecting Rod Bolt Diameter: 3/8"-1.600''L

    Advertised Horsepower Rating: 600~800HP/set

    Advertised RPM Rating: 7000-9000 rpm

    Material: Forged 4340 steel

    Pin: Bronze wrist pin bushings

    Tolerance: Balanced to +/- 1 gram in set

    Private Label: Yes , available (contact our sales)

    Bolts : with or without (Contact our sales)

    Dimension

    Center to Center Length: 152.019mm/5.984"

    Big End Bore Diameter: 51.001 mm/2.008"

    Big End Width: 19.8mm/0.780"

    Small End Bore Diameter: 22.015 mm /0.867"

    Small End Width: 19.8mm/0.780"
